Commercial Reverse Osmosis Water Filtration System

Vibrant Water Engineering specializes in commercial reverse osmosis equipment for any water treatment specialty application including Dialysis.  All water purification filters are of the highest quality to meet the demands of the industry.

We design our equipment utilizing the most up to date elements from all major element manufacturers.  This insures maximum recovery and optimum pure water quality while minimizing capital and operating costs.

We provide expected quality information along with pump operating cost and projections on future production and water.  In addition, we include custom built pre-treatment as required based on the needs of incoming water, resulting in the most economical and environmentally friendly operation of the entire system.

Visit our Blog on How Does Reverse Osmosis Work.

*See our video on commercial reverse osmosis and our complete line of water treatment products

The main focus of commercial reverse osmosis filtration is to remove impurities and TDS (total dissolved solids) from water giving customers the purest water possible.  Our commercial reverse osmosis systems average a 2:1 ratio of product to drain water which means every 3 gallons that go into the system result in 1 gallon to drain and 2 gallon of pure water.  We use thin film composite element that have an average 98.6% reduction for all impurities in the incoming water.  We custom build each system for the water chemistry at hand. Nothing is manufactured outside of our plant.  We build these systems from the ground up.  Any and all inquiries regarding size and capabilities are invited.

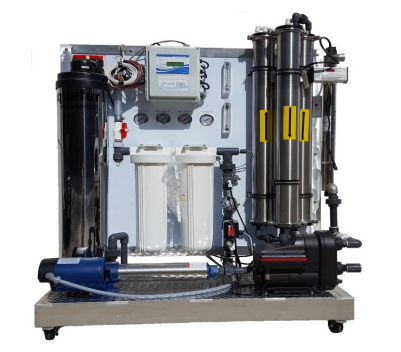

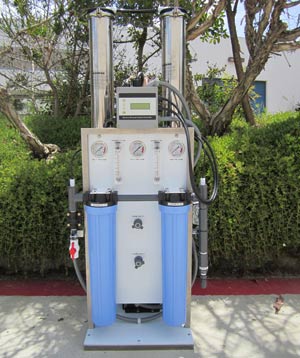

Light Commercial Reverse Osmosis Units

This section is dedicated to reverse osmosis units producing 150-6000 gallons per day of purified water.  We fabricate to our customers demands for size, shape and style.  Pricing depends on the incoming raw water chemistry.  We will not sell any system without either testing your water or seeing a detailed water analysis.  This will ensure us that your reverse osmosis system will work according to your needs.
Standard Features of
Light Commercial Reverse Osmosis Systems

-High production thin film elements
-High pressure pump (1/4-1.5 HP)
-Pressure gauges (inlet/outlet/pump)
-Recirculation and drain adjustable valves
-Drain and product flow meters
-5 micron pre filter
-Carbon block pre filter
-All other necessary RO components

Small Commercial Reverse Osmosis Options
-TDS (total dissolved solids) product monitor
-Storage tank(s)
-PLC controller
-Stainless steel repressure pumps
-Dual level float switches for storage tanks w/ control box
-High pressure safety switch
-Pressure differential switch on pre filters

Standard Sizes of Small Commercial Reverse Osmosis
-150 gallons per day
-350 gallons per day
-500 gallons per day
-750 gallons per day
-1,000 gallons per day
-3,000 gallons per day
-6,000 gallons per day

For help on choosing the best system for your application, please call (760) 734-5955. We will walk you through any questions/concerns you have. You will be connected to a specialist immediately upon calling.

A WORLD OF APPLICATIONS for Commercial Reverse Osmosis
*Restaurants
*Wine Production
*Cosmetic Companies
*Water Stores
*Pharmaceutical Grade
*Livestock
*Agriculture
*Plating Manufacturers
*Breweries
*Distilleries
*Electronic Production
*Medical/Dental Applications

Large Industrial Commercial Reverse Osmosis Systems

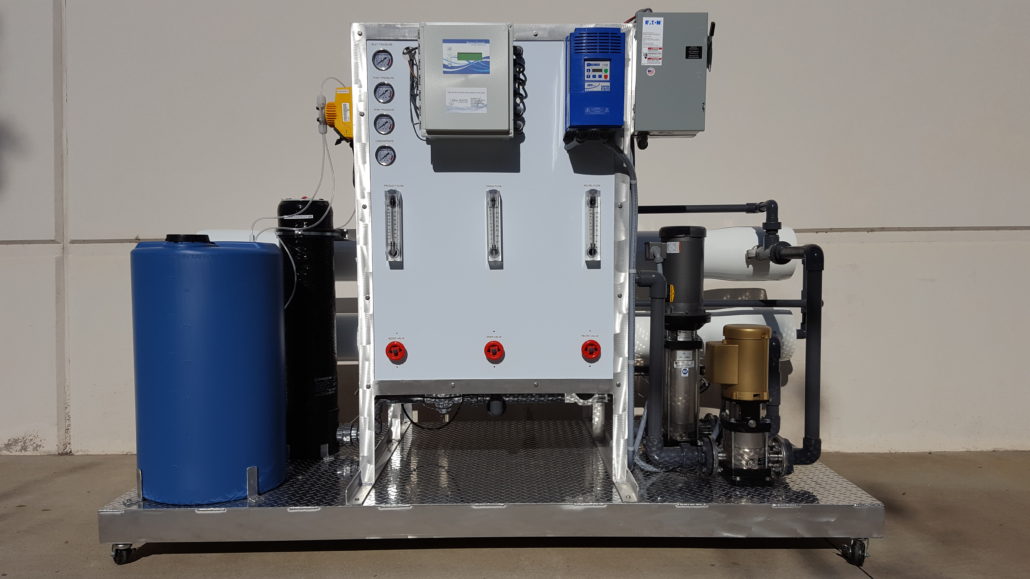

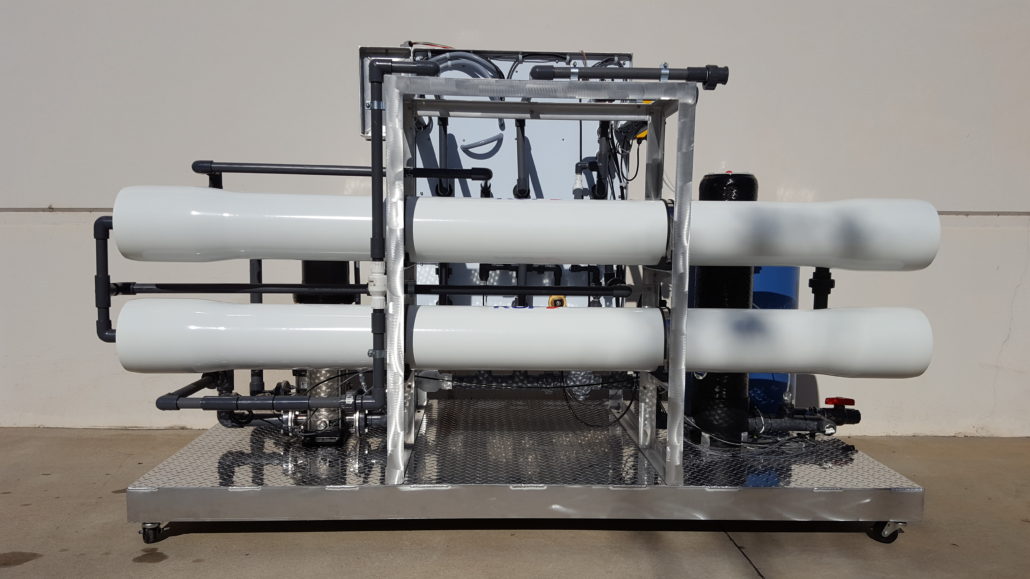

This section is dedicated to systems producing 6000-25000 gallons per day of purified water.  The pictures in the right column are customized units, this gives you an idea that every system is custom manufactured.  Pricing depends on the incoming raw water chemistry.  We will not sell any system without either testing your water or seeing a detailed water analysis.  This will ensure us that your system will work according to your needs.

Click here to see information about our Water Analysis Laboratory

Heavy Duty Commercial Reverse Osmosis Standard Features
-Stainless steel frame mounted on aluminum skid with wheels
-High production thin film elements
-High pressure pump (2-5 HP)High pressure pump (2-5 HP)
-Pressure gauges (inlet/outlet/pump)
-Recirculation and drain adjustable valves (optional blend valve)
-Drain and product flow meters
-5 micron pre filter (high flow commercial)
-Carbon block pre filter (high flow commercial)
-TDS (total dissolved solids) product monitor
-All other necessary RO components

Heavy Commercial Reverse Osmosis Optional Features
-Storage tank(s)
-PLC controller
-Stainless steel repressure pumps
-Dual level float switches for storage tanks w/ control box
-High pressure safety switch
-Pressure differential switch on pre filters

Heavy Commercial Reverse Osmosis Standard Sizes
-9000 gallons per day
-12000 gallons per day
-15000 gallons per day
-20000 gallons per day
-25000 gallons per day
-30,000-200,000 gallons per day



For help on choosing the best system for your application, please call (760) 734-5955.  We will walk you through any questions/concerns you have.  You will be connected to a specialist immediately upon calling.
